Home
Product Description
Proximity Sensor
CP Series Capacitive Proximity Sensor
M18 Cylindrical type
CP Series Capacitive Proximity Sensor
product name:

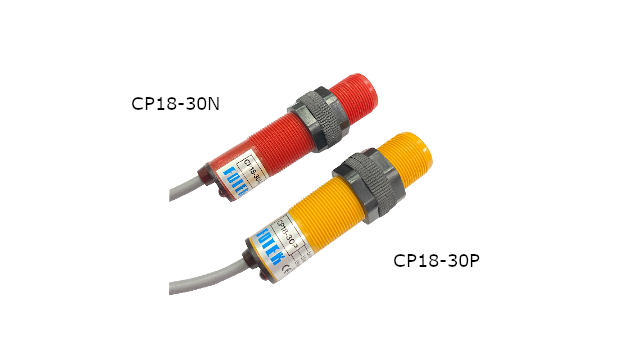

CP Series Capacitive Proximity Sensor
model:
CP18-30N
Type:
M18 Cylindrical type
related products
CP Series Capacitive Proximity Sensor
CP18-30NB
CP Series Capacitive Proximity Sensor
CP18-30P
CP Series Capacitive Proximity Sensor
CP18-30PB

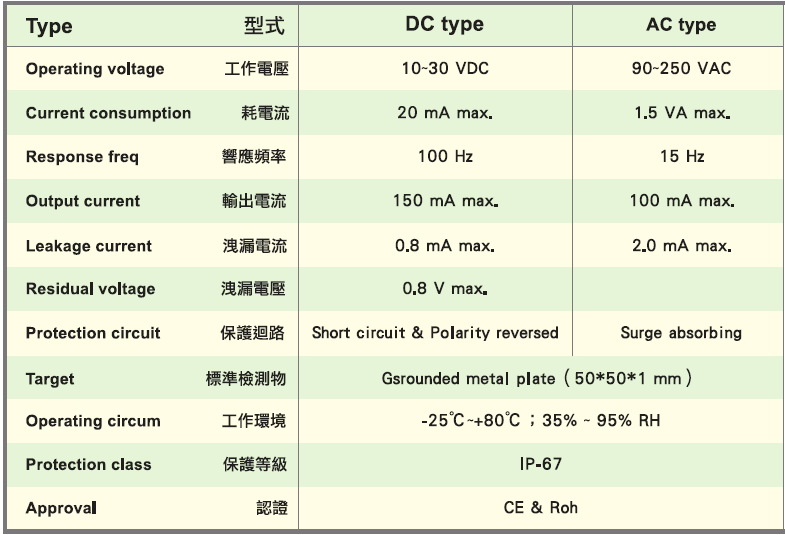

Specifications

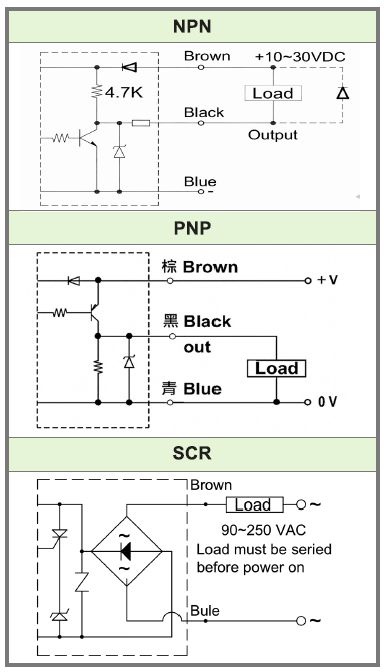

Wiring Diagram

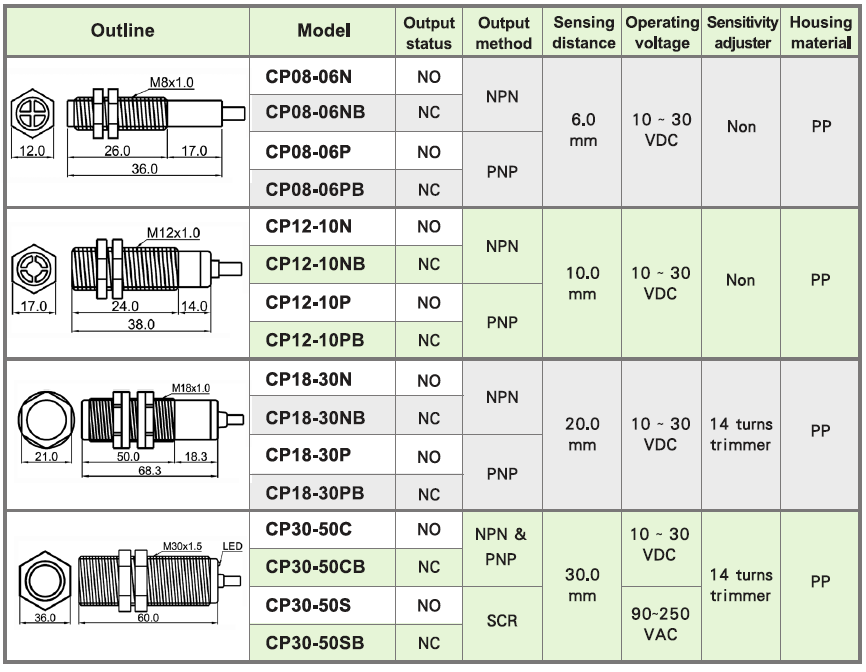

Dimensions
Product Manual
PROXI-CP
